FC/UPC-ST/UPC Multimode OM5 Simplex Lszh Fiber Patch Cord 0.9mm 2.0mm 3.0mm

  • 1
  • 2

Brand Name : TTI

Model Number : FC/UPC-ST/UPC patch cord

Certification : Standard Certification

Place of Origin : China

MOQ : Negociated

Price : Negociated

Payment Terms : L/C, D/A, D/P, T/T, ,

Supply Ability : 10000 pieces

Delivery Time : 1-3 Work Days

Packaging Details : Standard Package(Surport OEM/ODM)

Product namee : Fiber Optic Patch Cord

Application : FTTH FTTB FTTX Network

Connector type : APC/UPC

Material : PVC/LSZH

Fiber Type : G652D/G657A/G655

Color : Customized

Wavelength : 1310nm or 1550nm

Fiber count : Simplex or Duplex

Polish : PC/UPC/APC

Type : Single mode/Multi-mode

Quality control : 100% test before shipping

Length : 1m 2m 3m or Customized

Contact Now

FC/UPC-ST/UPC Multimode OM5 Simplex 0.9mm/2.0mm/3.0mm LSZH Fiber Optic Patch Cord
High Quality FC-ST Simplex OM5 Optic fiber Network Optical Jumper Patch Cord

Specification:

Type

Standard,Master

Style

LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC

Fiber

Singlemode/Multimode
50/125, 62.5/125 (Multimode) OM2&OM1
50/125, 10G (Multimode) OM3

Cable

Simplex, Duplex
Φ3.0mm, Φ2.0mm, Φ0.9mm
PVC or LSZH

Polishing Manner

UPC,SPC,APC (8°& 6°)

Insertion Loss

≤ 0.1dB (For Singlemode Master)
≤ 0.25dB (For Singlemode Standard)
≤ 0.25dB (For Multimode)
Tested by JDS RM 3750

Return Loss
(Singlemode)

UPC ≥ 50dB
SPC ≥ 55dB
APC ≥ 60dB (typ.65dB)
Tested by JDS RM3750

Repeatability

±0.1dB

Operating temperature

-400C to 850C

Geometry Requirement
( Singlemode)

Ferrule Endface Radius
7mm ≤ R ≤ 12mm (For APC)
10mm ≤ R ≤ 25mm (For Standard)
Apex Offset ≤ 30 μm (For Master)
Apex Offset ≤ 50 μm (For Standard)
Undercut -50nm ≤ U ≤ 50nm
Tested by DORC ZX-1

Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. TTI fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ,connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.

Feature:
1. Low insertion loss
2. High return loss
3. Excellent Repeatability, exchangeability, wearability and stability.

4. Environmentally Stable

Application:

1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor

5. Industry and military application

Product Picture:

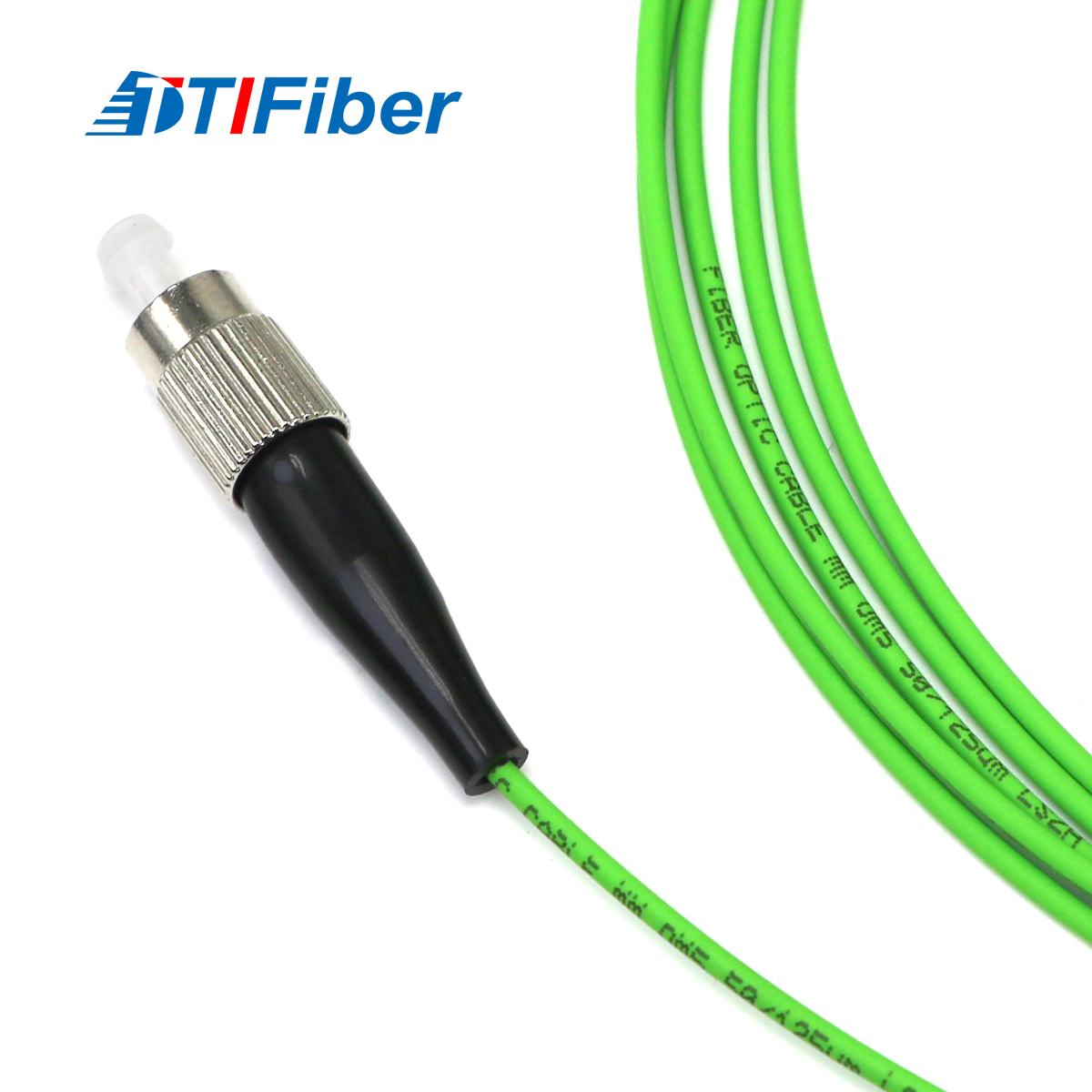

FC/UPC-ST/UPC Multimode OM5 Simplex Lszh Fiber Patch Cord 0.9mm 2.0mm 3.0mm

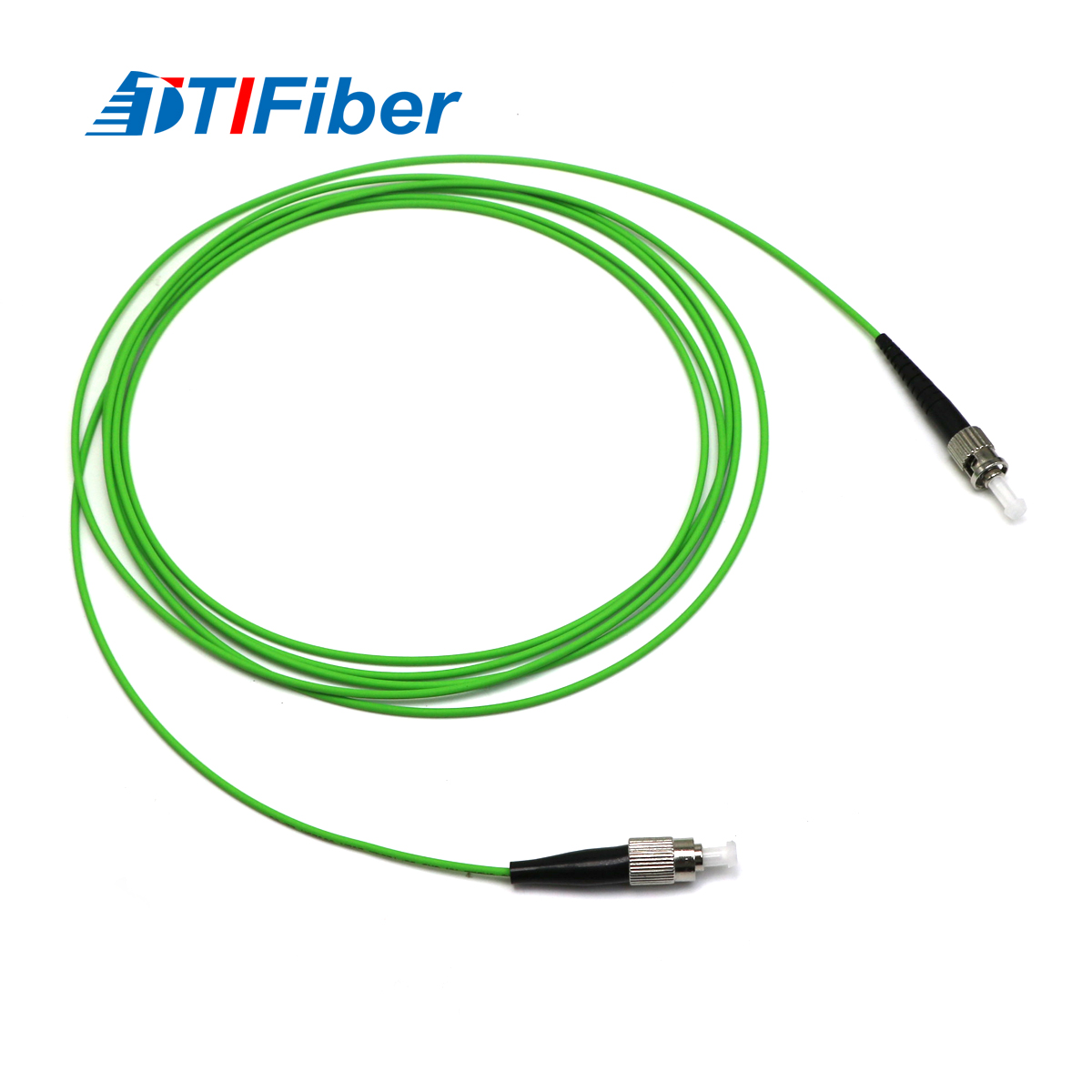

FC/UPC-ST/UPC Multimode OM5 Simplex Lszh Fiber Patch Cord 0.9mm 2.0mm 3.0mm

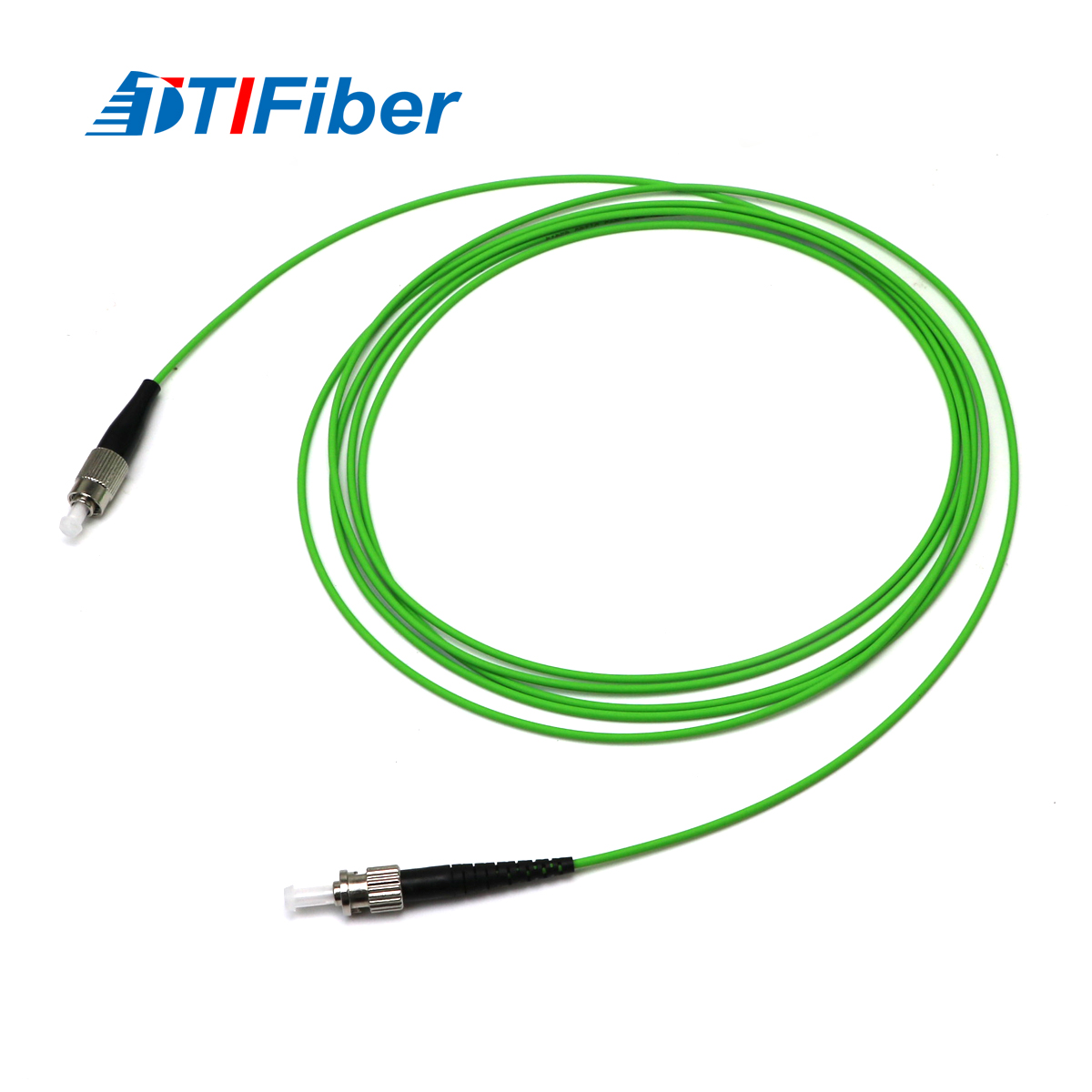

FC/UPC-ST/UPC Multimode OM5 Simplex Lszh Fiber Patch Cord 0.9mm 2.0mm 3.0mm

FAQ:

1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5. What's the Payment?
We accept all online payments .
